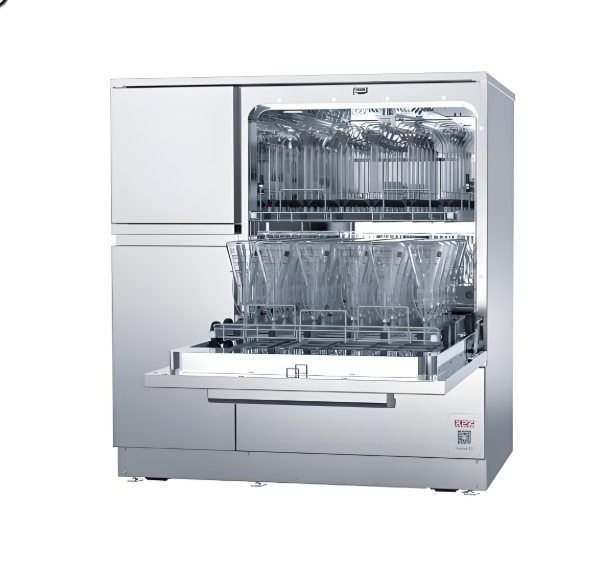

Aurora-F2 Laboratory glassware washer
Aurora-F2 Laboratory glassware washer
2025年11月10日     45

The Aurora-F2 laboratory glassware washer can be connected to both tap water and pure water sources. The normal cleaning process involves first using heated tap water and detergent for the main wash, and then using pure water for rinsing the cleaned items. If you have a requirement for drying function, please choose Aurora-F2.

0-600min/L

Circulation pump flow rate

4kw/9kw

Heating power

202L

Internal capacity
Consult Now
Introduction


Aurora-2/F2 laboratory glassware washer:

Used for washing conventional glasswares in the laboratory, suitable for washing laboratory glass, ceramic, metal, plastic and other materials (such as volumetric flasks, sample injection vials, triangular flasks, colorimetric tubes, test tubes, petri dishes, heart-shaped bottles, beakers, etc.).


Structure:

304shell & 316L chamber


Control system:

The control system has 35 standard programs and 100 custom setting programs.



Installation requirements:

Power Supply: 220-230V single-phase electricity at 50Hz or 380-400V three-phase five-wire.

Water supply: Municipal tap water and laboratory pure water for rinsing

Power: 4KW / 9KW



Four-stage filtration system:

The coarse filtration at the inlet prevents particulate matter in the water from entering the chamber. The dual sewage circulation filtration helps prevent the re-circulation of particulate matter and debris. The reverse-flow filtration of the circulation pump protects the component lifespan.


Circulation system:

Circulation speed: 0-600L/min, equipped with a circulation speed detection system and an overheat protection device.


Drying system:

Efficient HEPA filter and compressed air drying system can effectively dry the inner and outer surfaces of glassware. The drying system can be started with one click;

The drying temperature and the drying time can be adjusted. If you have a requirement for drying function, please choose Aurora-F2.



Parameters:

SeriesItemAurora-F2
AuroraOutside dimension

W930*D750*H990mm

+feet10-24mm adjustable

Internal capacity202L(Built-in lighting control
Washing lays  1-3
Circulation pump flow rate 0-600L/min
Heating power4kw/9kw
 Power 220V/380V
 Drying methodHot-air drying
 InstallationFreestanding
 Door opening Front-opening



Description:

SeriesItem
Aurora-F2
Aurora Operation pannel

Microcomputer intelligent control, featuring OLED display, waterproof version, stainless steel metal buttons, and equipped with 3 quick cleaning programs. Supports Chinese/Russian/English languages.

  Washing procedures 35 built-in cleaning programs, and 100 customizable cleaning programs.
 Operating authorization Multi-level operation permission management
Door control Automatic sensor door, with standard viewing window
BasketsModular basket frame, each layer can accommodate any two modules and conbine freely.
Monitoring systemEquipped with conductivity monitoring function (optional); Printing function (optional); Large-capacity data storage function
Reservation function  Appointment washing and delayed shutdown function
Energy-saving settingsBasket frame monitoring function, water saving, electricity saving, material saving
Spray arm system It can adjust the speed according to the types of glasswares , and conduct real-time monitoring to ensure that the speed remains within the set range.




洗瓶机Glory

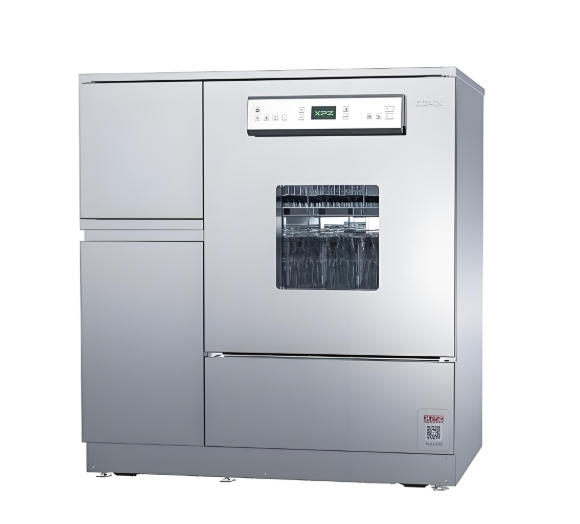

Glory-2/F2 laboratory glassware washer:

Used for washing conventional glasswares in the laboratory, suitable for washing laboratory glass, ceramic, metal, plastic and other materials (such as volumetric flasks, sample injection vials, triangular flasks, colorimetric tubes, test tubes, petri dishes, heart-shaped bottles, beakers, etc.).


Structure:

304shell & 316L chamber


Control system:

The control system has 35 standard programs and 100 custom setting programs.



Installation requirements:

Power Supply: 220-230V single-phase electricity at 50Hz or 380-400V three-phase five-wire.

Water supply: Municipal tap water and laboratory pure water for rinsing

Power: 4KW / 9KW





Four-stage filtration system:

The coarse filtration at the inlet prevents particulate matter in the water from entering the chamber. The dual sewage circulation filtration helps prevent the re-circulation of particulate matter and debris. The reverse-flow filtration of the circulation pump protects the component lifespan.


Circulation system:

Circulation speed: 0-500L/min, equipped with a circulation speed detection system and an overheat protection device.


Drying system:

Efficient HEPA filter and compressed air drying system can effectively dry the inner and outer surfaces of glassware. The drying system can be started with one click;

The drying temperature and the drying time can be adjusted. The drying model can be purchased as an optional upgrade, Glory-F2.



洗瓶机Glory



Parameters:

SeriesItemGlory-2Glory-F2
GloryOutside dimension

W612*D750*H830mm

+feet10-24mm adjustable

W612*D750*H830mm
+feet10-24mm adjustable

Internal capacity170L(Built-in lighting control)170L(Built-in lighting control)
Washing lays 1-3 1-3
Circulation pump flow rate400L/min400L/min
Heating power4kw/9kw4kw/9kw
 Power 220V/380V220V/380V
Drying methosEcodryHot air drying
 InstallationEmbedded / IndependentEmbedded / Independent
 Door opening Front-opening Front-opening



特点描述:

SeriesItemGlory-2Glory-F2
Glory Operation pannel

Microcomputer intelligent control, featuring OLED display, waterproof version, stainless steel metal buttons, and equipped with 3 quick cleaning programs. Supports Chinese/Russian/English languages.

Microcomputer intelligent control, featuring OLED display, waterproof version, stainless steel metal buttons, and equipped with 3 quick cleaning programs. Supports Chinese/Russian/English languages.

 Washing procedures35 built-in cleaning programs, and 100 customizable cleaning programs.35 built-in cleaning programs, and 100 customizable cleaning programs.
Operating authorizationMulti-level operation permission managementMulti-level operation permission management
Door control  Automatic sensor door, with standard viewing window Automatic sensor door, with standard viewing window
BasketsModular basket frame, each layer can accommodate any two modules and conbine freely.Modular basket frame, each layer can accommodate any two modules and conbine freely.
Monitoring systemEquipped with conductivity monitoring function (optional); Printing function (optional); Large-capacity data storage functionEquipped with conductivity monitoring function (optional); Printing function (optional); Large-capacity data storage function
Reservation function Appointment washing and delayed shutdown function Appointment washing and delayed shutdown function
Energy-saving settingsBasket frame monitoring function, water saving, electricity saving, material savingBasket frame monitoring function, water saving, electricity saving, material saving
Spray arm system It can adjust the speed according to the types of glasswares , and conduct real-time monitoring to ensure that the speed remains within the set range.It can adjust the speed according to the types of glasswares , and conduct real-time monitoring to ensure that the speed remains within the set range.
