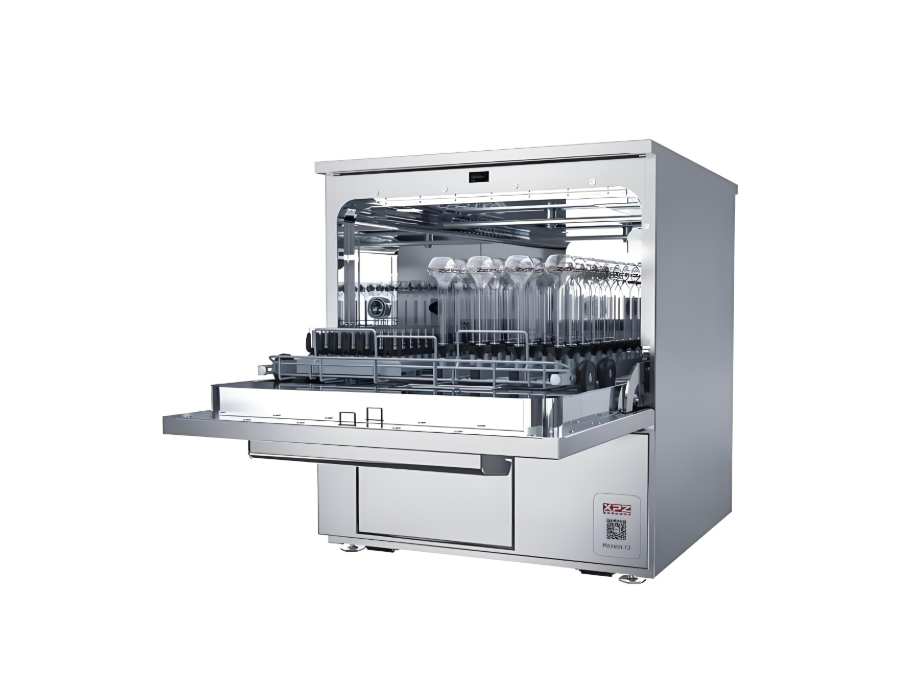

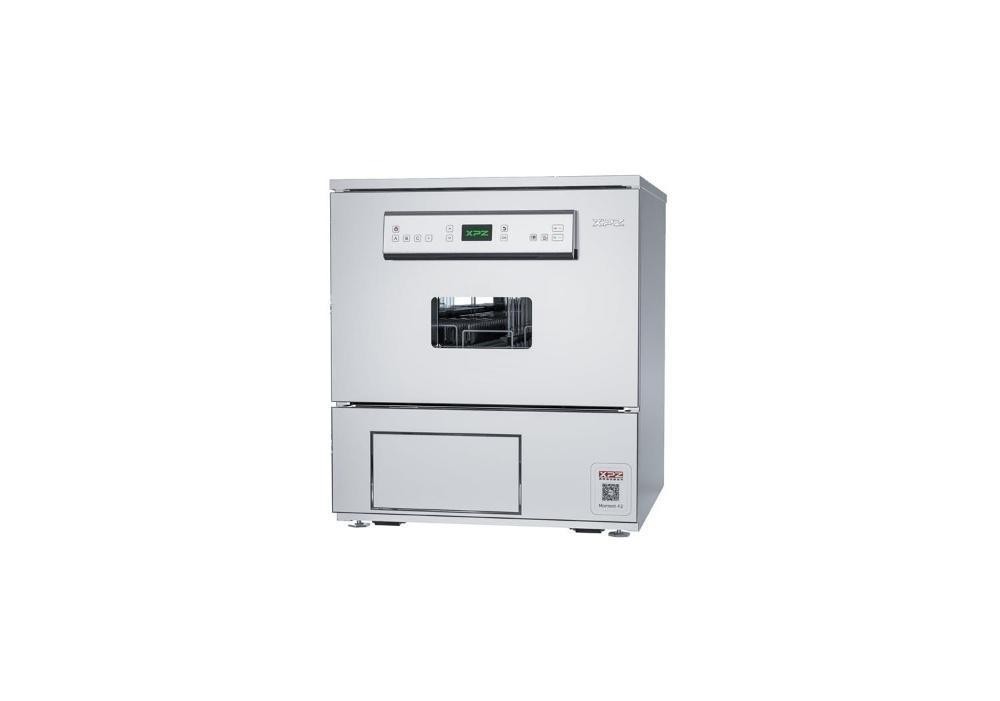

Moment-2/F2 Laboratory glassware washer-Hangzhou Xipingzhe Instruments Technology Co.,Ltd

Introduction

Moment-2/F2：

Used for washing conventional glasswares in the laboratory, suitable for washing laboratory glass, ceramic, metal, plastic and other materials (such as volumetric flasks, sample injection vials, triangular flasks, colorimetric tubes, test tubes, petri dishes, heart-shaped bottles, beakers, etc.).

Structure：

304shell & 316L chamber

Control system:

The control system has 38 standard programs and 100 custom setting programs.

Installation requirements：

Power Supply: 220-230V single-phase electricity at 50Hz or 380-400V three-phase five-wire.

Water supply: Municipal tap water and laboratory pure water for rinsing

Power: 4KW / 9KW

Four-stage filtration system:

The coarse filtration at the inlet prevents particulate matter in the water from entering the chamber. The dual sewage circulation filtration helps prevent the re-circulation of particulate matter and debris. The reverse-flow filtration of the circulation pump protects the component lifespan.

Circulation system:

Circulation speed:320L/min, equipped with a circulation speed detection system and an overheat protection device.

Drying system:

Efficient HEPA filter and compressed air drying system can effectively dry the inner and outer surfaces of glassware. The drying system can be started with one click;

The drying temperature and the drying time can be adjusted. The drying model can be purchased as an optional upgrade Moment-F2

Parameter：

Series	Item	Moment-2	Moment-F2
Moment	Outside dimension	W612D750H685mm +feet10-24mm adjustable	W612D750H685mm +feet10-24mm adjustable
	Inner capacity	126L（Built-in lighting control）	126L（Built-in lighting control）
	Washing lays	1-2	1-2
	Circulation pump flow rate	320L/min	320L/min
	Heating power	4kw/9kw	4kw/9kw
	Power	220V/380V	220V/380V
	Drying methods	Ecodry	Hot air drying
	Installation	Benchtop	Benchtop
	Door opening	Front-opening	Front-opening

Description

Series	Item	Moment-2	Moment-F2
Moment	Operation pannel	Microcomputer intelligent control, featuring OLED display, waterproof version, stainless steel metal buttons, and equipped with 3 quick cleaning programs. Supports Chinese/Russian/English languages.	Microcomputer intelligent control, featuring OLED display, waterproof version, stainless steel metal buttons, and equipped with 3 quick cleaning programs. Supports Chinese/Russian/English languages.
	Washing procedures	35 built-in cleaning programs, and 100 customizable cleaning programs.	35 built-in cleaning programs, and 100 customizable cleaning programs.
	Operating authorization	Multi-level operation permission management	Multi-level operation permission management
	Door control	Automatic sensor door, with standard viewing window	Automatic sensor door, with standard viewing window
	Baskets	Modular basket frame, each layer can accommodate any two modules and conbine freely.	Modular basket frame, each layer can accommodate any two modules and conbine freely.
	Monitoring system	Equipped with conductivity monitoring function (optional); Printing function (optional); Large-capacity data storage function	Equipped with conductivity monitoring function (optional); Printing function (optional); Large-capacity data storage function
	Reservation function	Appointment washing and delayed shutdown function	Appointment washing and delayed shutdown function
	Spray arm system	It can adjust the speed according to the types of glasswares , and conduct real-time monitoring to ensure that the speed remains within the set range.	It can adjust the speed according to the types of glasswares , and conduct real-time monitoring to ensure that the speed remains within the set range.

The oil-resistant models and basket frame accessories are specifically designed for the petrochemical, power, cosmetics, food and other monitoring fields. They are capable of completing complex and challenging cleaning tasks. For detailed parameters, please consult our sales representatives.

Welcome to choose Xipingzhe! We will provide you with comprehensive technical support and excellent after-sales service!
